Fire Fighting Emergency Broadcasting Communication Driver



Fire Fighting Emergency Broadcasting is the driver to communicate with emergency broadcasting system of fire fighting.



1. Read settings

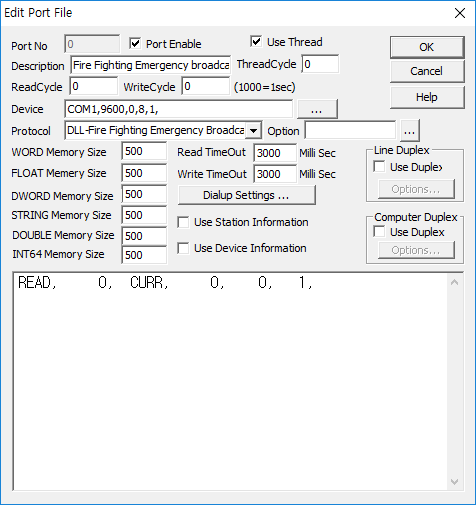

<Figure 1> is read setting example of Fire Fighting Emergency Broadcasting communication driver.

<Figure 1> Read setting example of Fire Fighting Emergency Broadcasting communication driver

Device part of  <Figure 1> input com port(COM1), baud rate(9600), data bit(8), stop bit(1)  respectively, accordint to the setting of controller.



Read schedule of Fire Fighting Emergency Broadcasting communication driver

Read schedule setting parameters are as follows:

1) station – don't care.

2) read command – Command : CURR( refer to <Table 1> ).

3) read start address – don't care.

4) Save start address for Communication Server – Saving start address of Communication Server.

5)    Read size – fixed to 1.



Read schedule example)

READ, 0, CURR, 0, 0, 1,


<Table 1> is data saving address and readed value for CURR read command.

Read Command

Contetns

 Data saving value of Communication Server  Remarks

CURR

read of

emergency broadcasting

system data

Saving Start Address + 0 : building or parking lot value

Saving Start Address + 1 : stairway value

Saving Start Address + 2 : floor value

Saving Start Address + 3 : status or

                                                command

 1 ~ 50 : building, 51 ~ 99 : parking lot
1 ~ 99 stairway
1 ~ 99 : floor, 0 : basement floor
01h = operation, 02h = recover, 04h = total recover,
08h = interlocking stop, 10h = interlocking  normal, 00h = other
<Table 1> Data saving address and readed value for CURR read command

Fire Fighting Emergency Broadcasting communication driver store the same data in WORD, DWORD, FLOAT, DOUBLE, INT64 memory, but the data format are different.

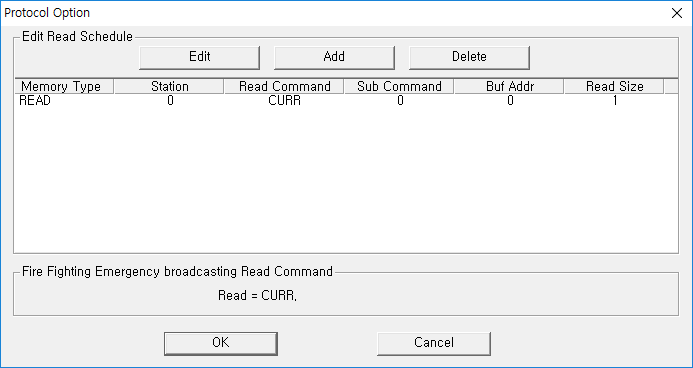

If you click the icon  in protocol option part at <Figure 1>, you can see the dialog box such as <Figure 2>. you can also set read schedule by using this part.

<Figure 2> Example of Fire Fighting Emergency Broadcasting communication driver’s Option dialog box



You can set read schedule by using , ,  button and listbox of <Figure 2>.

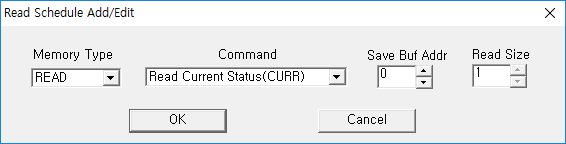

<Figure 3> Example of Fire Fighting Emergency Broadcasting communication driver’s read schedule Add/Edit dialog box



When you click Add button or Edit button in dialogue box of <Figure 2>, dialogue box of <Figure 3> is shown.



2. Write settings

Fire Fighting Emergency Broadcasting don't support 'Write settings'.
