FLOS Batch Controller BC410 Communication Driver is the driver to communicate with BC410 flow controller of FLOS.(or FnS Plus Co.)
<Figure 1> is read setting example of FLOS Batch Controller BC410 communication driver.
|
|

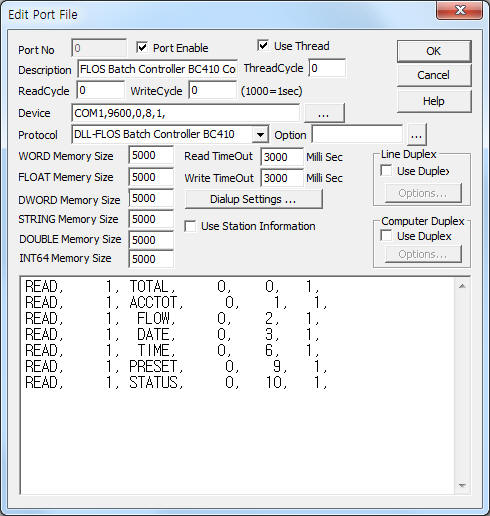

| <Figure 1> Read setting example of FLOS Batch Controller BC410 communication driver |
Device part of <Figure 1> input Com Port(COM1), Baud Rate(9600), Parity Bit(0), Data Bit(8), Stop Bit(1) respectively.
When Batch controller model is FC110, input 'FC110'(blank or other string = BC410 model) at option part.
FLOS Batch Controller BC410 communication driver’s read schedule
Read schedule setting parameters are as follows:
1) STATION – 0 ~ 99 station number.
2) Read command – Command = TOTAL, ACCTOT, FLOW, DATE, TIME, PRESET, STATUS. (Refer to <Table 1> )
3) Read start address –Don't care.
4) Save start address for Communication Server – Saving start address of Communication Server.
5) Read Size – Size = Fix to 1.
Read schedule example)
READ, 1, TOTAL, 0, 0, 1,
READ, 1, ACCTOT, 0, 1, 1,
READ, 1, FLOW, 0, 2, 1,
READ, 1, DATE, 0, 3, 1,
READ, 1, TIME, 0, 6, 1,
READ, 1, PRESET, 0, 9, 1,
READ, 1, STATUS, 0, 10, 1,
<Table 1> is a description of read command types and store values of FLOS Batch Controller BC410 communication driver.
| Read Command | Contents | Store Values | Remarks |
| TOTAL | Read of Batch Total | Start Addr + 0 : Batch Total |
|
| ACCTOT | Read of Acc-Total | Start Addr + 0 : Acc-Total |
|
| FLOW | Read of Flow rate | Start Addr + 0 : Flow rate |
|
| DATE | Read current date | Start Addr + 0 : year Start Addr + 1 : month Start Addr + 2 : day |
|
| TIME | Read current time | Start Addr + 0 : hour Start Addr + 1 : minute Start Addr + 2 : second |
|
| PRESET | Read of Batch Preset | Start Addr + 0 : Batch Preset Quantity |
|
| STATUS | Read of Batch Status | Start Addr + 0 : Batch Status |
0 : Batch Delivery is Complete 1 : Batch is Paused 2 : Batch is in Slow Start Cycle 3 : Batch is in Pre-stop Cycle 4 : Batch is Full Flow Cycle 5 : Batch Delivery is Complete but ‘End of Batch’ has not yet been reached 6 : Flow Alarm Detected 7 : Interlock Alarm Detected 8 : Reserved |
| <Table 1> Read command types and store values ofFLOS Batch Controller BC410 communication driver | |||
FLOS Batch Controller BC410 communication driver store the same data in WORD, DWORD, FLOAT memory, but the data format are different.
If you click the icon
in protocol
option part, you can see the dialogue box such as <Figure 2>. you can also set
read schedule by using this part.
 |

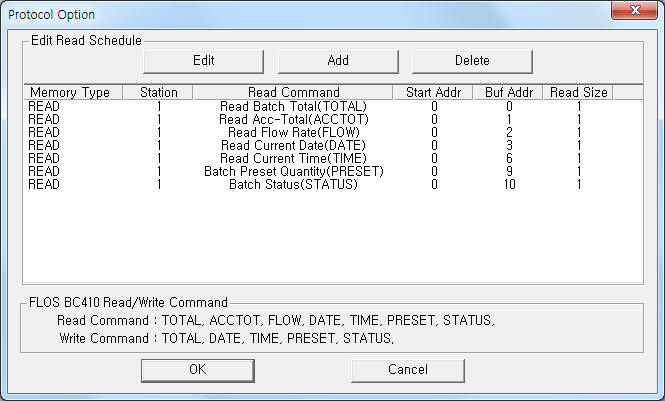

| <Figure 2> Example of FLOS Batch Controller BC410 communication driver’s Option dialogue box |
You can set read schedule by using
,
,
button and
listbox of <Figure 2>.
 |

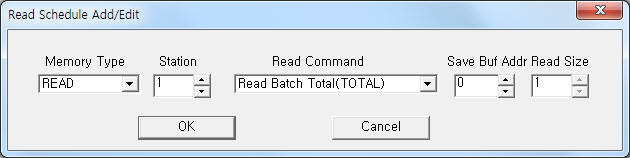

| <Figure 3> Example of FLOS Batch Controller BC410 communication driver’s read schedule Add/Edit dialogue box |
When you click Add button or Edit button in dialogue box of <Figure 2>, dialogue box of <Figure 3> is shown.
You can change the setting values of FLOS Batch Controller BC410 by using write commands.
Bit Write
Bit write and word write have the same setting parameters except output value(0 or 1).
Word Write
Word write setting parameters are as follows:
1) PORT Port no. (0 ~ 255)
2) STATION 0 ~ 99 station number.
3) ADDRESS Don't care.
4) Extra1 Write command = ACCTOT, DATE, TIME, PRESET, STATUS. ( Refer to <Table 2> )
5) Extra2 PRESET write command : 0 ~ 3 decimal point position, 0 = don't use decimal point, 1 ~ 3 = 1 ~ 3 decimal point,
other command : Don't care.
| Write Command | Contents | Range of output |
ACCTOT |
Reset of Acc-Total |
0 ( Reset ) |
DATE |
send current computer date to BC410 |
Don't care. read current computer date. |
TIME |
send current computer time to BC410 |
Don't care. read current computer time. |
PRESET |
Setting of Batch Preset Quantity |
Preset value |
STATUS |
Setting of Change Batch Status |
1 = Batch Start, 2 = Batch Stop, 3 = Batch Reset, 4 = Alarm(Flow/Interlock) Clear |
| <Table 2> Write commands and range of the write value for FLOS Batch Controller BC410 communication driver | ||
Write example 1)
PORT : 0 STATION : 1 ADDRESS : 0000 EXTRA1 : ACCTOT EXTRA2 : 0
The setting parameter shown above is an example of word write for Acc-Total reset of FLOS Batch Controller BC410 equipment connected with 0 port, set to 1 station.
Write example 2)
PORT : 0 STATION : 1 ADDRESS : 0000 EXTRA1 : PRESET EXTRA2 : 0
The setting parameter shown above is an example of word write for Batch Preset Quantity(decimal point = don't use) of FLOS Batch Controller BC410 equipment connected with 0 port, set to 1 station.
Note) You have to set same decimal point position write command and equipment's setting.
Connection of main power line and communication cable are as follows.
Connection of communication cable
Please connect T-, T+, R-, R+(14 ~ 17 connector) of BC410 equipment and T-, T+, R-, R+ of computer's RS-485 connector.
 |

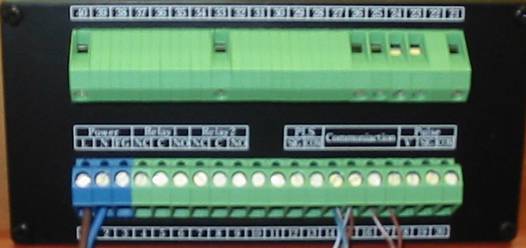

| <Figure 4> Rear side appearance of FLOS Batch Controller BC410(connected communication cable, main power line,...) |
Connection of main power line
You have to connect main power input AC 85 ~ 264V to 1, 2 main power connector such as <figure 4>.
<Figur 5> is an appearance of FLOS Batch Controller BC410 equipment.
<Figur 6> is an appearance of FnS Plus's BC410 equipment.
 |

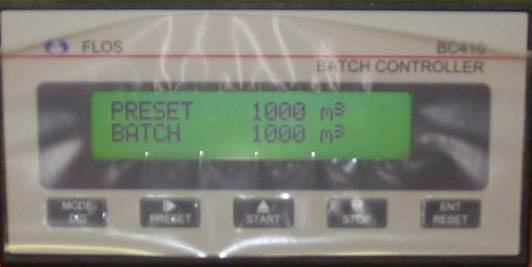

| <Figure 5> Appearance of FLOS Batch Controller BC410 |
 |

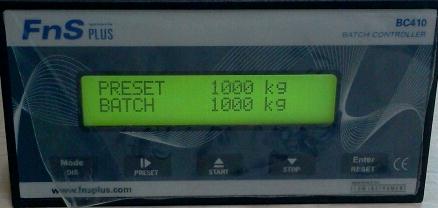

| <Figure 6> Appearance of FnS Plus's BC410 |
