EXPERT EX9000 DIO/AIO Series Communication Driver
EXPERT EX9000 DIO/AIO Series communication driver is the driver to communicate with Data Acquisition Module of EXPERT in Taiwan.
Note) EXPERT EX9000 DIO/AIO Series normally use RS/485 communication.
1. Read settings

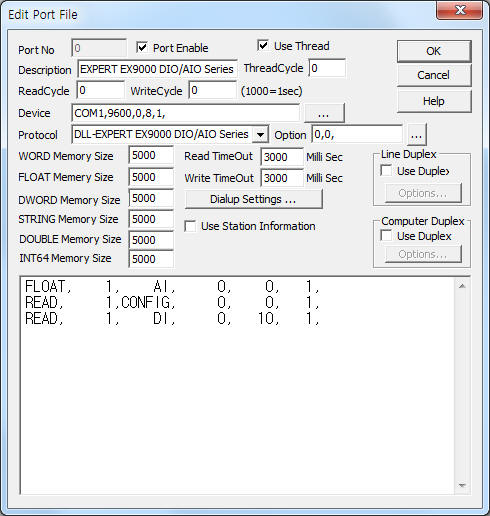

<Figure 1> is read setting example of EXPERT EX9000 DIO/AIO Series communication driver.
 |
| <Figure 1> Read setting example of EXPERT EX9000 DIO/AIO Series communication driver |
Device part of <Figure 1> input Com Port(COM1), Baud Rate(9600), Parity Bit(0), Data Bit(8), Stop Bit(1) respectively, according to setting of controller.
Also you can input wether 'analog read data is hex format' (0 : float, 1 : word, default = 0), 'check enable/disable of CRC' (1 : enable, 0 : disable, default = 0) by using option part.
Note) You can set controller's station address, baud rate, EXPERT
EX9000 DIO/AIO Series by using communication setting of
INIT switch( Refer to: chapter 4)
EXPERT EX9000 DIO/AIO Series communication driver’s read schedule
Read schedule setting parameters are as follows:
1) Station – Controller station number = 0 ~ 255.
2) Read Command – Command = AIN, AI, DI, DO, CONFIG, CH_STS, CH_DATA. ( Refer to <Table 1> )
3) Read Start Address – Read channel number( 0 ~ ) when AIN read command.
4) Save start address for Communication Server – Saving start address of Communication Server.
5) Read Size – Fixed to 1.
AIN : 1 FLOAT/WORD data,
AI : All channel data read, 1 ~ n FLOAT/WORD data,
DI, DO : 1 WORD data,
CONFIG : 4 WORD data,
CH_STS : 1 WORD data,
CH_DATA : All channel data read, 1 ~ n WORD data
Read schedule example)
FLOAT, 1, AI, 0, 0, 1,
READ, 1, CONFIG, 0, 0, 1,
READ, 1, DI, 0, 10, 1,
<Table 1> is read commands and content of EXPERT EX9000 DIO/AIO Series communication driver.
|
Read Command |
Contents |
Remarks |
|
AIN |
Read of one analog channel |
Refer to <Table 2> |
|
AI |
Read of all analog channel |
Refer to <Table 2> |
|
DI |
Read of digital input channel status |
each bit 0 = Off, 1 = On |
|
DO |
Read of digital output channel status |
|
|
CONFIG |
Read of module setting status |
Refer to <Table 3> |
|
CH_STS |
Read of channel status(enable/disable) |
each bit, 0 = disable, 1 = enable |
|
CH_DATA |
Read of all analog channel value |
equal response for 'AI' command, always WORD |
| <Table 1> Read commands and content of EXPERT EX9000 DIO/AIO Series communication driver | ||
|
Data Saving Address |
Contents |
Remarks |
|
Start Add + 0 |
1 ~ n channel value ( FLOAT or
WORD ) |
CONFIG data format 0 or bit 0, ON
= FLOAT data, bit 1, ON = WORD data |
|
Start Add + 1 ~ |
||
|
Start Add + n |
||
| <Table 2> Data saving address and contents of analog related read command(AIN, AI) | ||
|
Data Saving Address |
Contents |
Range |
|
Start Add + 0 |
Address of module (station) |
0 ~ 255 |
|
Start Add + 1 |
Type of module |
Digital module = always 40h, Analog module = refer to <Table 4> |
|
Start Add + 2 |
Baud rate |
3 = 1200, 4 =
2400, 5 = 4800, 6 = 9600, 7 = 19200, 8 = 38400, 9 =
57600, 10 ( Ah )= 115200 |
|
Start Add + 3 |
Data type |
Refer to <Table 5> |
| <Table 3> Data saving address and contents of 'CONFIG' read command | ||
|
Module type code |
Input range |
|
8 ( 8h
) |
+/- 10 V |
|
9 ( 9h
) |
+/- 5 V |
|
10 ( Ah
) |
+/- 1 V |
|
11 ( Bh
) |
+/- 500 mV |
|
12 ( Ch
) |
+/- 150 mV |
|
13 ( Dh
) |
+/- 20 mV |
| <Table 4> Analog module type according to module type code | |
|
Bit |
Input range |
Default |
|
0 |
0 = float, 1 = 0 ~ 100 % float 2 = 0 ~ 65535 (WORD ( '+' = 0 ~ 72767,
'-' = 65535 ~ 32768 ) |
0 |
|
1 |
||
|
2 ~ 4 |
Don't care |
|
|
5 |
Check enable/disable ( OFF = disable ) |
OFF |
|
6 |
Normal/Fast (
OFF = Normal ) |
|
|
7 |
60/50 HZ
Rejection ( OFF = 60 HZ ) |
|
| <Table 5> Data type according to readed each bit value | ||

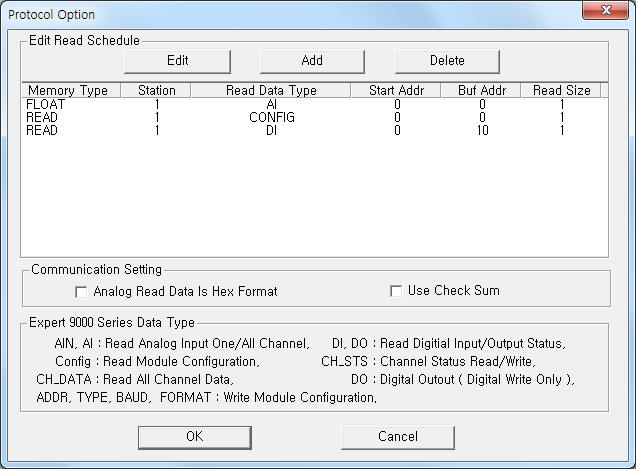

If you click the icon
in protocol option part, you
can see the dialogue box such as <Figure 2>. you can also set read schedule by
using this part.
 |
| <Figure 2> Example of EXPERT EX9000 DIO/AIO Series communication driver’s Option dialogue box |
You can set read schedule by using
,
,
button and listbox of <Figure
2>.
Analog read data format and CRC check enable/disable can set by using the part of ‘Analog Read Is Hex Format', "Use Check Sum' shown in <Figure 2>.
 |

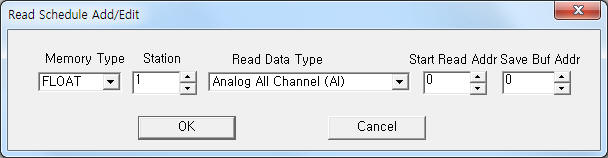

| <Figure 3> Example of EXPERT EX9000 DIO/AIO Series communication driver’s read schedule Add/Edit dialogue box |
When you click Add button or Edit button in dialogue box of <Figure 2>, dialogue box of <Figure 3> is shown.
2. Writing settings
You can write the setting value by using write settings.
Digital Write
Digital write(for digital input Tag) setting parameters are as follows:
1) PORT Port no. (0 ~ 255)
2) STATION Controller station number = 0 ~ 255.
3) ADDRESS Writing address = 0 ~ 16.(decimal unit)
4) Extra1 Write command = DO, or space.
5) Extra2 Don't care.
Write example 1)
PORT:0, Station : 1, Address : 0000, Extra1 : DO, EXTRA2 :
The setting parameter shown above is a control(On/Off) example of 0(1st)
DO for 1 station EXPERT EX9000.
Write example 1)
PORT:0, Station : 1, Address : 0003, Extra1 : DO, EXTRA2 :
The setting parameter shown above is a control(On/Off) example of 3(4th)
DO for 1 station EXPERT EX9000.
Analog Write
Analog write(for analog input Tag) setting parameters are as follows:
1) PORT Port no. (0 ~ 255)
2) STATION Controller station number = 0 ~ 255.
3) ADDRESS Don't care.
4) Extra1 Write command.
ADDR, TYPE, BAUD, FORMAT : setting command of module configuration. ( Refer to <Table 3> ~ <Table5> )
H_STS : setting of channel using(enable/disable). ( each bit : enable/disable channel, 0 ~ FFh = 8 channel )
5) Extra2 Don't care.
Write example 1)
PORT:0, Station : 1, Address : 0000, Extra1 : ADDR, EXTRA2 : , Output value = 2,
The setting parameter shown above is address changing example from 1 to 2.
Note) If you changed station address such as 'Write example 1)', you have to communicate with newly set station.
Write example 2)
PORT:0, Station : 1, Address : 0000, Extra1 : TYPE, EXTRA2 : , Output value = 9,
The setting parameter shown above is a module
type changing example to +/- 5V.
Write example 3)
PORT:0, Station : 1, Address : 0000, Extra1 : BAUD, EXTRA2 : , Output value = 7,
The setting parameter shown above is a baud
rate changing example to 19,200 bps.
Write example 4)
PORT:0, Station : 1, Address : 0000, Extra1 : FORMAT, EXTRA2 :
The setting parameter shown above is a data type changing example of 1 station EXPERT EX9000 DIO/AIO Series controller. ( output value = refer to <Table 5> )
Write example 5)
PORT:0, Station : 1, Address : 0000, Extra1 : CH_STS, EXTRA2 :
The setting parameter shown above is setting of channel using(enable/disable) example for 1 station EXPERT EX9000 DIO/AIO Series controller. ( output value = 255 : enable all channel(default))
3. connection of main power and communication cable
Connection of main power and communication cable are as follows.
Connection of main power
Please connect 10 ~ 30V DC main power to GND, +Vs connector to EXPERT EX9000 DIO/AIO Series controller such as <Figure 4>.

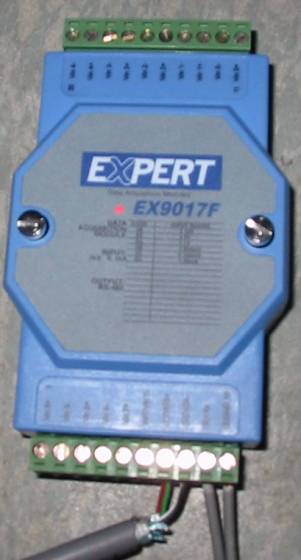

<Figure 4> is main power and communication cable connection example to EXPERT EX9017 controller.
 |
| <Figure 4> Main power and communication cable connection example to EXPERT EX9017 controller |
Connection of communication cable
Please connect RS-485 communication cable to Port2 connector such as below Figure.
Computer side EXPERT EX9000 DIO/AIO Series side
Tx+, Rx+ -------------------------------------- DATA + connector
Tx-, Rx- -------------------------------------- DATA - connector
4. INIT Mode setting method of EXPERT EX9000 DIO/AIO Series
Init Mode setting method of EXPERT EX9000 DIO/AIO Series is as follows.
EX9000 Series controller can set baud rate, station address, etc.
When you want set default (this call 'Init Mode') baud rate, station adddress, etc, you can set 'Init Mode' in the following order.
1) Power off
EX9000 Series controller.
2) Connect 'INIT Mode' pin. ( EX9017F = JPA
pin, )
3) Power on EX9000 Series controller.
4) Communicate with EX9000 Series controller with
9600 bps, 0 station address.
5) Power off EX9000 Series controller and disconnect 'INIT Mode' pin.
Controller's baud rate and station address of after 'INIT Mode' setting
baud rate
: 9600 bps
controller station address : 1 ( or 0 according to
controller type )
using of Check Sum : don't use
