Dupline SPT-DIN communication driver is the driver to communicate with power meter of Carlo Gavazzi in Italy.

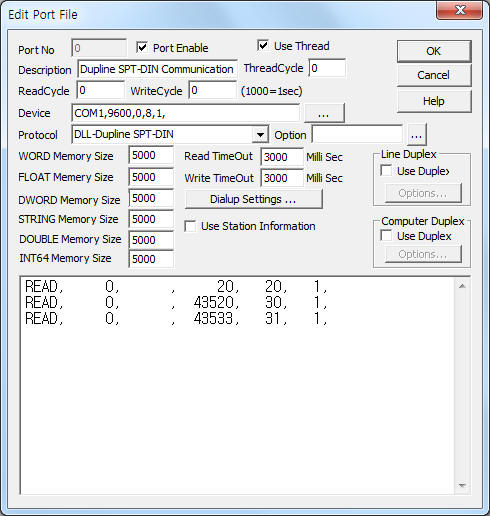

<Figure 1> is read setting example of Dupline SPT-DIN communication driver.
|
|
| <Figure 1> Read setting example of Dupline SPT-DIN communication driver |
Device part of <Figure 1> input Com Port(COM1), Baud Rate(9600), Parity Bit(0), Data Bit(8), Stop Bit(1) respectively, according to setting of controller.
Dupline SPT-DIN communication driver’s read schedule
Read schedule setting parameters are as follows:
1) Station – Controller station number.
2) Read Command – Don't care.
3) Read Start Address – Read start address(decimal unit) of Dupline SPT-DIN controller. ( Refer to SPT-DIN reference manual )
4) Save start address for Communication Server – Saving start address of Communication Server.
5) Read Size – fixed to 1.
Read schedule example)
READ, 0, , 20, 20, 1,
READ, 0, , 43520, 30, 1,
READ, 0, , 43533, 31, 1,
You can write the setting value by using write settings.
Bit Write
Bit write setting parameters are as follows:
1) PORT Port no. (0 ~ 255)
2) STATION Controller station number.
3) ADDRESS Don't care.
4) Extra1 Write command = RST.
5) Extra2 Don't care.
Write example 1)
PORT : 0, STATION : 1, ADDRESS : 0000, EXTRA1 : RST , EXTRA2 :
The setting parameter shown above is power count reset example of 1 station number Dupline SPT-DIN.
Word Write
Word write setting parameters are as follows:
1) PORT Port no. (0 ~ 255)
2) STATION Don't care.
3) ADDRESS Write address(hex-decimal unit) of Dupline SPT-DIN controller. ( Refer to SPT-DIN reference manual )
4) Extra1 Don't care.
5) Extra2 Don't care.
Write example 1)
PORT : 0, STATION : 0, ADDRESS : AA0D, EXTRA1 : , EXTRA2 :
The setting parameter shown above is a write example of AA0Dh EPROM DATA. ( station number = 0 )
