DaeSung Fox-300 Series Communication Driver is the driver to communicate with temperature/humidity controller of DaeSung Eng.in Korea.
<Figure 1> is read setting example of DaeSung Fox-300 Series communication driver.
|
|

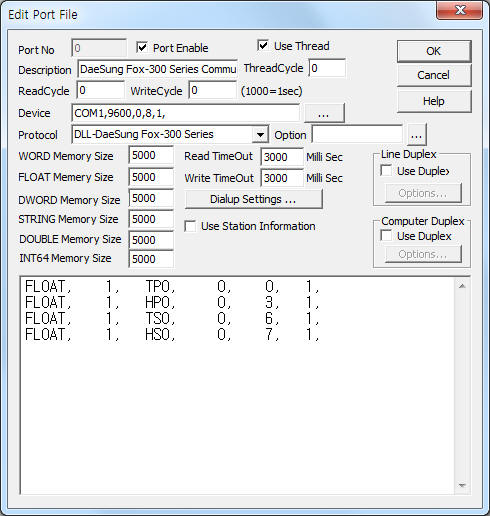

| <Figure 1> Read setting example of DaeSung Fox-300 Series communication driver |
Device part of <Figure 1> input Com Port(COM1), Baud Rate(9600), Parity Bit(0), Data Bit(8), Stop Bit(1) respectively.
DaeSung Fox-300 Serie controller can set baud rate (1200, 2400, 4800, 9600, 19200) and controller address(0 ~ 99) by using 'setton button' or 'write settings'.
DaeSung Fox-300 Series communication driver’s read schedule
Read schedule setting parameters are as follows:
1) STATION – Controller address = 0 ~ 99.
2) Read Command – Command = TP0, HP0, TS0 ~ TS9, TSA ~ TSG, HS0 ~ HS9, HSA ~ HSD. ( for 302 model, Refer to <Table 1> )
3) Read Start Address – Don't care.
4) Save start address for Communication Server – Saving start address of Communication Server.
5) Read Size – Fixed to 1.
Read schedule example)
FLOAT, 1, TP0, 0, 0, 1,
FLOAT, 1, HP0, 0, 3, 1,
FLOAT, 1, TS0, 0, 6, 1,
FLOAT, 1, HS0, 0, 7, 1,
<Table 1> is a description of read commands type and stored values of DaeSung Fox-300 Series communication driver.
| command | Contents | Store Values | Remarks |
| TP0 | Read of current temperature | Start Add + 0 : Current temperature, Start Add + 1 : Error status, (0 = normal, 1 = sensor open error, 2 = sensor short error) Start Add + 2 : Output status (1 = T/H Out On, 3 = T/H Out Off) |
Ttemperature and humidity values save in the memory after the calculation. |
| HP0 | Read of current humidity | Start Add + 0 : Current humidity, Start Add + 1 : Error status, 0 = normal, 1 = sensor open error, 2 = sensor short error) Start Add + 2 : Output status (1 = T/H Out On, 3 = T/H Out Off) |
|
| TS0 ~ TS9, TSA ~ TSG |
Read/Write of temperature setting | Start Add + 0 : Current setting value | for Fox-302 model according to the model differ Read/Write 'command' Fox-300 : TS0 ~ TS6, HS0 ~ HS4 |
| HS0 ~ HS9, HSA ~ HSD |
Read/Write of humidity setting | ||
| <Table 1> Read commands type and stored values of DaeSung Fox-300 Series communication driver | |||
DaeSung Fox-300 Series communication driver store the same data in WORD, DWORD, FLOAT memory, but the data format are different.
If you click the icon
in protocol option part, you
can see the dialogue box such as <Figure 2>. you can also set read schedule by
using this part.
 |

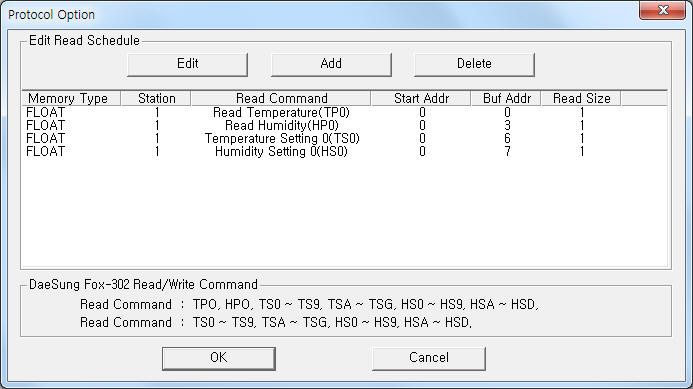

| <Figure 2> Example of DaeSung Fox-300 Series communication driver’s Option dialogue box |
You can set read schedule by using
,
,
button and listbox
of <Figure 2>.
 |

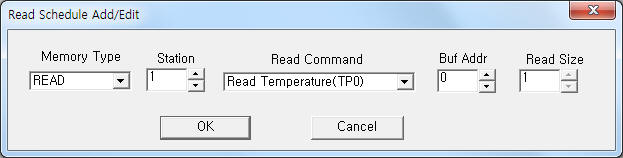

| <Figure 3> Example of DaeSung Fox-300 Series communication driver’s read schedule Add/Edit dialogue box |
When you click Add button or Edit button in dialogue box of <Figure 2>, dialogue box of <Figure 3> is shown.
You can write setting value by using write settings.
Bit Write
Bit write and word write have the same setting parameters except output value.( 0 or 1 )
Word Write
Word write setting parameters are as follows:
1) PORT Port no. (0 ~ 255)
2) STATION Controller address = 0 ~ 99.
3) ADDRESS Don't care.
4) Extra1 Write command = TS0 ~ TS9, TSA ~ TSG, HS0 ~ HS9, HSA ~ HSD. ( for 302 model, Refer to <Table 1> )
5) Extra2 Use of dot position.
1 = use 1 dot position, ( TS0, ..)
0 : don't use dot position.
Write example 1)
PORT : 0 STATION : 1 ADDRESS : 0000 EXTRA1 : TS0 EXTRA2 : 1
The setting parameter shown above is an example of temperature setting to 1 DaeSung Fox-300 Series controller address.( dot position = 1 )
Write example 2)
PORT : 0 STATION : 1 ADDRESS : 0000 EXTRA1 : HS0 EXTRA2 : 0
The setting parameter shown above is an example of humidity setting to 1 DaeSung Fox-300 Series controller address.
Write example 3)
PORT : 0 STATION : 1 ADDRESS : 0000 EXTRA1 : TS1 EXTRA2 : 0
The setting parameter shown above is an example of temperature type(0 = C( Cooler ), 1 = H( Heater )) setting to 1 DaeSung Fox-300 Series controller address.
Connection of communication cable and main power line are as follows.
Connection of communication cable
You have to connect RS-485 communication cable between DaeSung Fox-300 Series and computer such as <Figure 4>.
 |

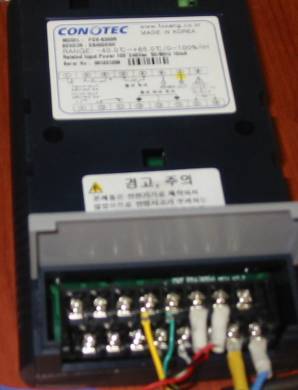

| <Figure 4> Connection example of main power line and communication cable to DaeSung Fox-300 controller |
Connection of main power line
Please connect 100 ~ 240 V AC 50/60 HZ main power to 'AC IN' connector.
<Figure 5> shows the appearance of DaeSung Fox-8300R controller.
 |

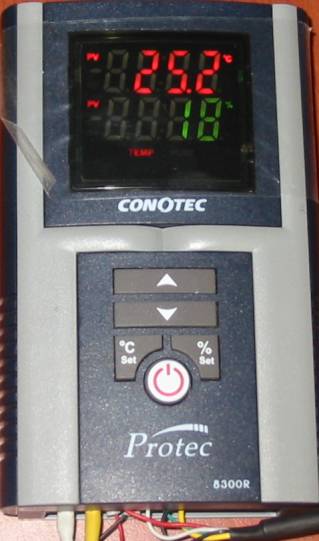

| <Figure 5> Appearance of DaeSung Fox-8300R controller |
