DPTH-100T Inverter Communication Driver is the driver to communicate with solar inverter controller of DIK Co., Ltd. in Korea.

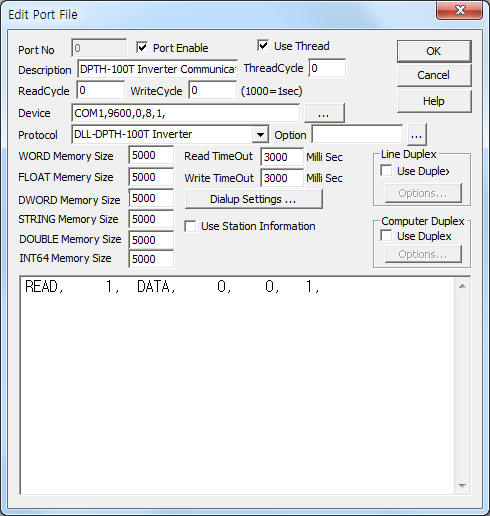

<Figure 1> is read setting example of DPTH-100T Inverter communication driver.
|
|
| <Figure 1> Read setting example of DPTH-100T Inverter communication driver |
Device part of <Figure 1> input Com Port(COM1), Baud Rate(9600), Parity Bit(0), Data Bit(8), Stop Bit(1) respectively, according to setting of controller.
DPTH-100T Inverter communication driver’s read schedule
Read schedule setting parameters are as follows:
1) STATION – Controller address = 0 ~ 255.
2) Read Command – Command = DATA. ( Refer to <Table 1> )
3) Read Start Address – Don't care.
4) Save start address for Communication Server – Saving start address of Communication Server.
5) Read Size – Fixed to 1. ( Refer to <Table 1> )
Read schedule example)
READ, 1, DATA, 0, 0, 1,
<Table 1> is data saving address and contents of DPTH-100T Inverter communication driver.
<Table 2> is each bit status of 'Status' and 'Fault' value.
Data Saving Address |
Contents |
Data Range |
Remarks |
Start Add + 0 |
Input voltage (Vdc) |
0.0~999.9 |
V |
Start Add + 1 |
Input current (Idc) |
0.0~2,500.0 |
A |
Start Add + 2 |
Input power (Pdc) |
0.0~1,250.0 |
kW |
Start Add + 3 |
RS line voltage (Vrs) |
0.0~999.9 |
V |
Start Add + 4 |
ST line voltage (Vst) |
||
Start Add + 5 |
TR line voltage (Vtr) |
||
Start Add + 6 |
R-phase current (Ir) |
0.0~2,500.0 |
A |
Start Add + 7 |
S-phase current (Is) |
||
Start Add + 8 |
T-phase current (It) |
||
Start Add + 9 |
Output power (Pac) |
0.0~1,250.0 |
Kw |
Start Add + 10 |
Power factor (PF) |
0.0~99.9 |
% |
Start Add + 11 |
Ffrequency (Fac) |
Hz |
|
Start Add + 12 |
Max value of moment power generation (Pac_max) |
0.0~1,250.0 |
kW |
Start Add + 13 |
Total power of today (Daily_P) |
0.0~6,500 |
kWh |
Start Add + 14 |
Total power (Total_P) |
0.0~160,000 |
|
Start Add + 15 |
Time of total power (Total_OP) |
0~20,000 |
Min |
Start Add + 16 |
Time of totay's total power (OP_Day) |
0~65,535 |
|
Start Add + 17 |
Fan operation of a day (Fan_Run_Day) |
0~65,000 |
Day |
Start Add + 18 |
Internal stack temperature (Temp_Inverter) |
-45~205 |
℃ |
Start Add + 19 |
STATUS_1 |
|
Refer to <Table 2> |
Start Add + 20 |
STATUS_2 |
|
|
Start Add + 21 |
FAULT_1 |
|
|
Start Add + 22 |
FAULT_2 |
|
|
Start Add + 23 |
FAULT_3 |
|
|
| <Table 1> Data saving address and contents of DPTH-100T Inverter communication driver | |||
| Bit | STATUS_1 | STATUS_2 | FAULT_1 |
FAULT_2 |
FAULT_3 |
| Bit 0 (LSB) |
SqStart : Ready for inverter's power generation(Waiting) | Reserved | VpvLvF : Low voltage of PV(solar cells) [ PV Low Voltage ] |
IdcOcHw : Over current of PV(solar cells) [ PV Over Current ] |
Reserved |
| Bit 1 | SqDone : Inverter's power generating, operating(MPPT) | VpvOvF : Over voltage of PV(solar cells) [ PV Over Voltage ] |
AcOcHw : Over current of Grid [ Grid Over Current ] |
||
| Bit 2 | FreqOk : Normal frequency | VdcLvF : Don't use |
AcSYNC : Abnormal of frequency |
||
| Bit 3 | VpvOk : Normal PV(solar cells) | VdcOvF : Don't use |
InvF : Stop according to error of internal inverter |
||
| Bit 4 | VdcOk : Don't use | VsLvF : Low voltage of Grid [ Grid Low Voltage ] |
Reserved |
||
| Bit 5 | VsOk : Normal Grid | VsOvF : Over voltage of Grid [ Grid Over Voltage ] |
|||
| Bit 6 | McOn : MC ON status | CALerr : Setting value error of internal inverter |
|||
| Bit 7 | FanOn : FAN ON status | SETerr : HMI setting value error |
|||
| Bit 8 (MSB) |
Reserved | CMDerr : Command error (Communication error of external inverter or HMI ) |
|||
| <Table 2> Each bit status of 'Status' and 'Fault' value | |||||
DPTH-100T Inverter communication driver store the same data in WORD, DWORD, FLOAT memory, but the data format are different.

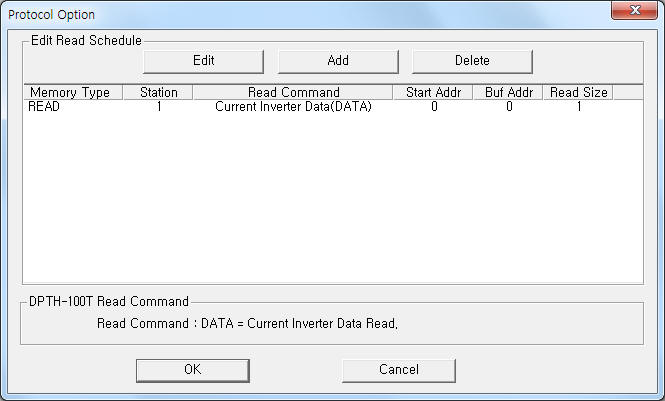

If you click the icon
in protocol option part, you
can see the dialogue box such as <Figure 2>. you can also set read schedule by
using this part.
 |
| <Figure 2> Example of DPTH-100T Inverter communication driver’s Option dialogue box |
You can set read schedule by using
,
,
button and listbox of <Figure
2>.
 |

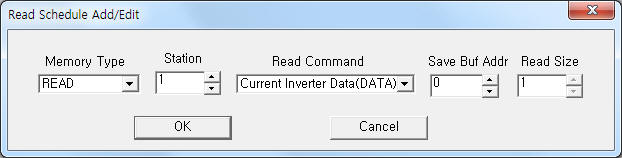

| <Figure 3> Example of DPTH-100T Inverter communication driver’s read schedule Add/Edit dialogue box |
When you click Add button or Edit button in dialogue box of <Figure 2>, dialogue box of <Figure 3> is shown.
DPTH-100T Inverter communication driver does not support Writing settings.
