DPM_NET 424C/624C Communication Driver



DPM-NET 424C/624C Communication Driver is the driver to communicate with electronic display board controller of ChungWoo Hitech in Korea.



Note) Compatible controller : DPM-424C, DPM-64, DPM-50

1. Read settings



<Figure 1> is read setting example of  DPM-NET 424C/624C communication driver.

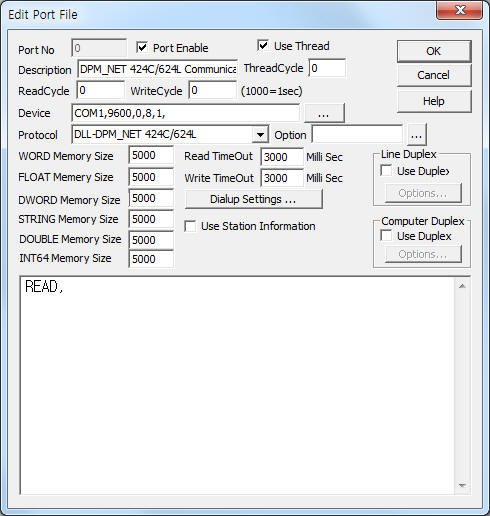

<Figure 1>  Read setting example of  DPM-NET 424C/624C communication driver

Device part of  <Figure 1> input Com Port(COM1), Baud Rate(9600), Parity Bit(0), Data Bit(8), Stop Bit(1) respectively, according to setting of controller.

Also you can set 'delay time of write packet' (mSec unit, default = 0) by using option part.



DPM-NET 424C/624C communication driver¨s read schedule

DPM-NET 424C/624C communication driver's read schedule input 'READ' one line.



Read schedule example)

READ,



2. Writing settings

You can write the setting value by using write settings.



Bit Write

DPM-NET 424C/624C communication driver don't support bit write.



Word Write

Word write setting parameters are as follows:

1)  PORT                   Port no. (0 ~ 255)

2)  STATION             DPM-NET controller station number = 0 ~ 255. ( Refer to <Table 1>, <Table 2> )

3)  ADDRESS           Don't care.

4)  Extra1                   Alarm status. ( DPM-50 model don't support alarm status )

H : HIGH ALARM status – blinking,

L : LOW ALARM status – blinking.

10 : Auto.

5)  Extra2                   Decimal point = 0 ~ 3 or 10.

0 : don't use decimal point,

1 : 1 digit decimal point,

2 : 2 digit decimal point,

3 : 3 digit decimal point,

10 : auto digit decimal point - according to writing number. ( max 3 digit decimal point )

DIP 1 DIP 2 DIP 3 DIP 4 DIP 5 DIP 6 DIP 7 DIP 8 ADDRESS
Off Off Off Off Off Off Off Off 000
On Off Off Off Off Off Off Off 001
・・ ・・
On On On On On On On On 255
<Table 1> Station setting method of DPM-424C, DPM-64C
DIP 1 DIP 2 DIP 3 DIP 4 DIP 5 DIP 6 DIP 7 DIP 8 Station
Off Off Off Off Off Off Off Off 000
Off Off Off Off Off Off Off On 001
・・ ・・
On On On On On On On On 255
<Table 2> Station setting method of DPM-5
3. Connection of communication line and controller's station setting

You have to connect RS-422 communication cable between DPM-424C, DPM-64C, DPM-50 controller and computer such as <Figure 2>.



Note) When you use the 'Multi-Drop', please install 100 ヘ termination resistor at the end controller.

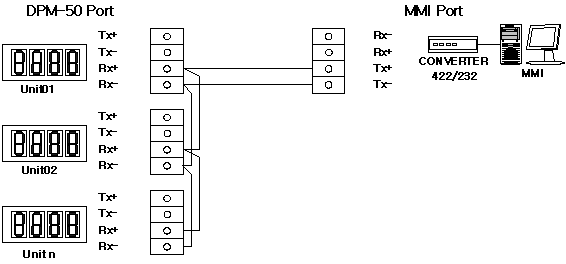

<Figure 2> Connection of RS-422 communication line between DPM controller and computer.
