DMATE 2000 Communication Driver

DMATE 2000 Communication Driver is the driver to communicate with controller of Locas Co., Ltd. in Korea.

1. Read settings

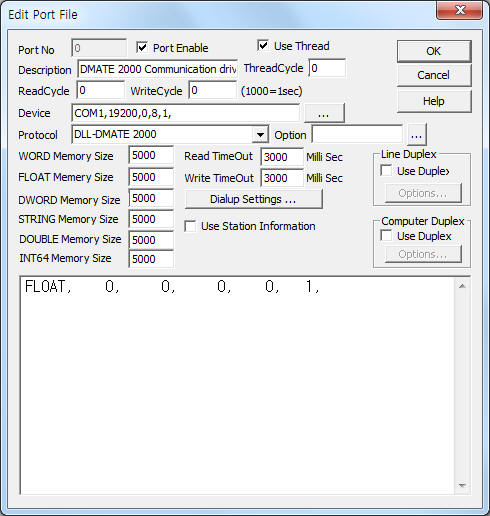

<Figure 1> is read setting example of  DMATE 2000 communication driver.

<Figure 1>  Read setting example of  DMATE 2000 communication driver

Device part of  <Figure 1> input Com Port(COM1), Baud Rate(19200), Parity Bit(0), Data Bit(8), Stop Bit(1) respectively, according to setting of controller.

DMATE 2000 communication driver’s read schedule

Read schedule setting parameters are as follows:

1) Station – Don't care.

2) Read Command – Don't care.

3) Read Start Address – Don't care.

4) Save start address for Communication Server – Saving start address of Communication Server.

5) Read Size – fixed to 1. ( 8 or 16 Data )

Read schedule example)

FLOAT,     0,     0,     0,    0,   1,

When you use 'FLOAT' for read command, save voltage value to 'FLOAT' memory.

If you use 'READ' or 'DWORD', save voltage value x 100 to 'READ' or 'DWORD' memory.

2. Writing settings

 DMATE 2000 communication driver don’t support ‘Writing settings’.
