DA-7300 Data Logger Communication Driver is the driver to communicate with gas monitoring controller of DongAn Information Industry in Korea.

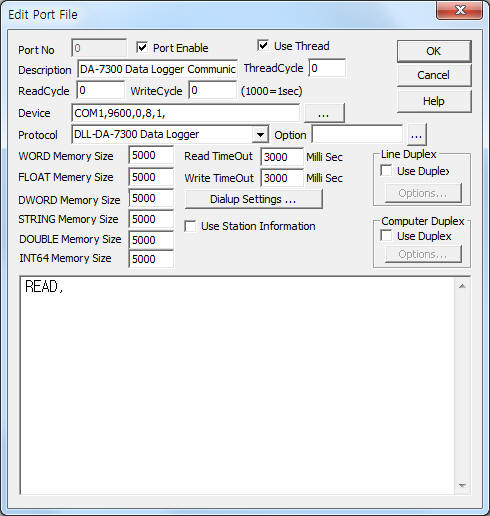

<Figure 1> is read setting example of DA-7300 Data Logger communication driver.
|
|
| <Figure 1> Read setting example of DA-7300 Data Logger communication driver |
Device part of <Figure 1> input Com Port(COM1), Baud Rate(9600), Parity Bit(0), Data Bit(8), Stop Bit(1) respectively.
DA-7300 Data Logger controller can set baud rate, ... by using setting button of front pannel.
DA-7300 Data Logger communication driver¡¯s read schedule
DA-7300 Data Logger communication driver's read schedule input 'READ' one line.
Read schedule example)
READ,
<Table 1> ~ <Table 3> is readed RPT1( 5 minute average value ) data's saving address and contents of WORD, FLOAT, STRING memory.
RPT2's readed data( 1 hour average value ) save 'Address + 100' of <Table 1> ~ <Table 3>.
| Address | Contents of WORD memory | Remarks |
| 0 | Company code | 1 ~ 999 |
| 1 | Chimney number | 1 ~ 99 |
| 2 | DCD communication status | 0 = normal |
| 3 ~ 13 | Measuring instrument status | Refer to <Table 4> |
| 14 ~ 24 | Data Logger status | |
| 25 ~ 29 | Year, month, day, hour, minute of data | |
| 30 | Mmeasuring item number of number 0 | Refer to <Table 5>, <Table 6> |
| 31 | Units of number 0 | |
| 32 ~ 33 | Mmeasuring item number and units of number 1 | |
| ¡¦ | ¡¦ | |
| 50 ~ 51 | Mmeasuring item number and units of number 10 | |
| <Table 1> Readed RPT1 data's saving address and contents of WORD memory | ||
Address |
Contents of FLOAT memory |
Remarks |
0 ~ 10 |
Measuring value of 0 ~ 10 number |
float point value |
| <Table 2> Readed RPT1 data's saving address and contents of FLOAT memory | ||
Address |
Contents of STRING memory |
Remarks |
0 |
String of measuring data's name number 0 |
|
1 |
String of measuring data's unit number 0 |
|
2 ~ 3 |
String of measuring data's name and unit number 1 |
|
¡¦ |
¡¦ |
|
20 ~ 21 |
String of measuring data's name and unit number 10 |
|
| <Table 3> Readed RPT1 data's saving address and contents of STRING memory | ||
Value |
Status(meaning) |
Remarks |
0 |
Normal |
|
1 |
Calibration |
|
2 |
Improper operation ( can not Sampling ) |
|
4 |
Power failure |
|
8 |
Maintenance |
|
16 |
Do not exist measurement |
read 'X' value |
... |
... |
|
| <Table 4> The meaning of Data Logger status according to readed value | ||
Value |
Measuring item |
String value |
0 |
Sulfur Dioxide gas |
SO2 |
1 |
Dust |
TSP |
2 |
Nitrogen compounds |
NOX |
3 |
HCL |
HCL |
4 |
HF |
HFb |
5 |
Ammonia |
NH3 |
6 |
Chlorine gas |
CL2 |
7 |
CO2 |
COb |
8 |
O2 |
O2b |
9 |
Flow rate |
VEL |
10 |
Temperature |
TMP |
256 |
Other |
|
| <Table 5> The meaning of measuring item number according to readed value | ||
Value |
Units |
Measuring item |
0 |
PPM |
Sulfur Dioxide gas, Nitrogen compounds, HCL, HF, Ammonia, Chlorine gas, CO2 |
1 |
MGM |
Dust |
2 |
(%) |
O2 |
3 |
M3H |
Flow rate |
4 |
DEG |
Temperature |
16 |
*** |
Abnormal status of measurement or Data Log |
256 |
Other |
|
| <Table 6> The meaning of units according to readed value | ||
Note) Please set 'SEND' mode, the DA-7300 Data Logger controller. (use Serial port number 1)
DA-7300 Data Logger communication driver don't support write settings.(read only controller)
