DaeSung Alarm Monitoring Communication Driver is the driver to communicate with alarm monitoring controller of Daesung Control Industry Co., Ltd.in Korea.

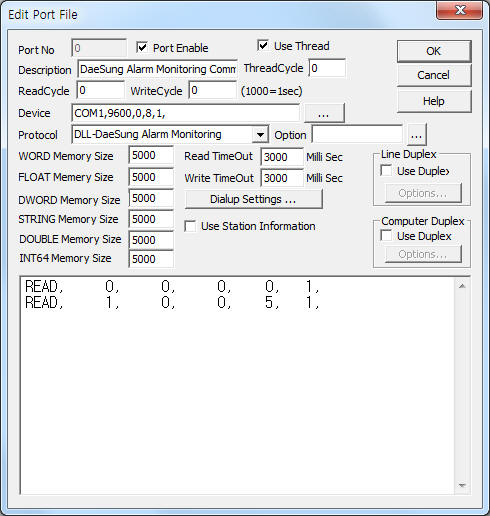

<Figure 1> is read setting example of DaeSung Alarm Monitoring communication driver.
<Figure 1> Read setting example of DaeSung Alarm Monitoring communication driver |
Device part of <Figure 1> input Com Port(COM1), Baud Rate(9600), Parity Bit(0), Data Bit(8), Stop Bit(1) respectively.
DaeSung Alarm Monitoring communication driver¡¯s read schedule
Read schedule setting parameters are as follows:
1) STATION – Controller address = 0 ~ 25. (0 : A, 1 B, ¡¦ Z : 25)
2) Read Command – Don't care.
3) Read Start Address – Don't care.
4) Save start address for Communication Server – Saving start address of Communication Server.
5) Read Size – Fixed to 1. ( read size = 5, Refer to <Table 1> )
Read schedule example)
READ, 0, 0, 0, 0, 1,
READ, 1, 0, 0, 5, 1,
<Table 1> is store values and alarm number of DaeSung Alarm Monitoring communication driver.
Store Values | Alarm number | Remarks |
Start Addr + 0 | 1 ~ 8 | use 0 ~ 7 bit, bit value = ON : confirm alarm |
Start Addr + 1 | 8 ~ 16 | |
Start Addr + 2 | 17 ~ 24 | |
Start Addr + 3 | 25 ~ 32 | |
Start Addr + 4 | 33 ~ 40 | |
<Table 1> Store values and alarm number of DaeSung Alarm Monitoring communication driver |
Eexample 1)
When alarm number 1 confirmed - Start Addr + 0 WORD memory 1st bit = 1(ON). (saved WORD memory value = 01h).
Eexample 2)
When alarm number 2 confirmed - Start Addr + 0 WORD memory 2nd bit = 1(ON). (saved WORD memory value = 02h).
Eexample 3)
When alarm number 1 and 2 confirmed - Start Addr + 0 WORD memory 1st and 2nd bit = 1(ON). (saved WORD memory value = 03h).
Eexample 4)
When alarm number 5 confirmed - Start Addr + 0 WORD memory 5th bit = 1(ON). (saved WORD memory value = 10h).
Eexample 5)
When alarm number 9 confirmed - Start Addr + 1 WORD memory 1st bit = 1(ON). (saved WORD memory value = 01h).
DaeSung Alarm Monitoring communication driver don¡¯t support ¡®Writing settings¡¯.
