DAEJOO DPM Communication Driver is the driver to communicate with DPM meter of DaeJoo TD System in Korea.

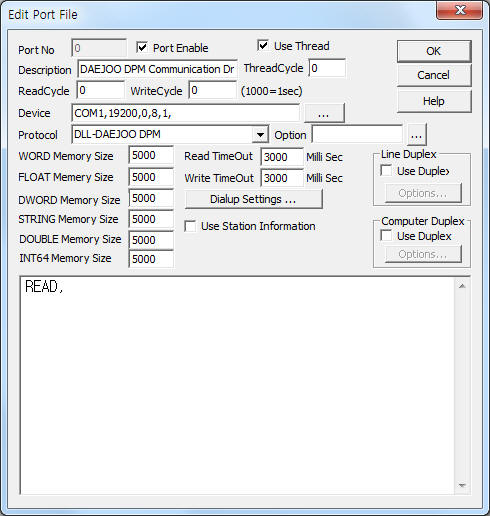

<Figure 1> is read setting example of DAEJOO DPM communication driver.
|
|
| <Figure 1> Read setting example of DAEJOO DPM communication driver |
Device part of <Figure 1> input Com Port(COM1), Baud Rate(19200), Parity Bit(0), Data Bit(8), Stop Bit(1) respectively.
DAEJOO DPM communication driver¡¯s read schedule
DAEJOO DPM communication driver's read schedule input 'READ' one line.
Read schedule example)
READ,
Please connect direct RS-485 communication cable between DAEJOO DPM and computer.
You can write the setting value by using write settings.
Digital Write
DAEJOO DPM communication driver don¡¯t support ¡®Bit write¡¯.
Analog Write
Analog write setting parameters are as follows:
1) PORT Port no. (0 ~ 255)
2) STATION DPM address = 1 ~ 254.
3) ADDRESS Don't care.
4) Extra1 Controller type.
6 = 6 digit DPM,
4N = 4 digit recently version DPM,
BLANK6 = display of all blank command for 6 digit DPM,
BLANK4 = display of all blank command for 4 digit recently version DPM,
BLANK = display of all blank command for 4 digit DPM,
4, ... = 4 digit DPM ( default controller ).
5) Extra2 Dot position. ( 0 ~ 3 : 4 digit controller, 0 ~ 5 : 6 digit controller )
6 digit DPM( 6 ) and 4 digit recently version DPM( 4N ) = don't care. ( please set 'none dot' at controller's setting )
4 digit DPM = 0 ~ 3 dot position.
Write example 1)
Port:0, Station:1, Address:0000, Extra1: , Extra2:0
The setting parameter shown above is an example of write(decimal number) to 4 digit DPM(address = 1) without dot.
Write example 2)
Port:0, Station:2, Address:0000, Extra1: , Extra2:1
The setting parameter shown above is an example of write(decimal number) to 4 digit DPM(address = 2) with 1 dot position.
Write example 3)
Port:0, Station:3, Address:0000, Extra1: , Extra2:2
The setting parameter shown above is an example of write(decimal number) to 4 digit DPM(address = 3) with 2 dot position.
Write example 4)
Port:0, Station:4, Address:0000, Extra1: , Extra2:3
The setting parameter shown above is an example of write(decimal number) to 4 digit DPM(address = 4) with 3 dot position.
Write example 5)
Port:0, Station:5, Address:0000, Extra1: BLANK6, Extra2:0
The setting parameter shown above is an example of blank write to 6 digit DPM(address = 5).
Write example 6)
Port:0, Station:6, Address:0000, Extra1: 6, Extra2:4
The setting parameter shown above is an example of write(decimal number) to 6 digit DPM(address = 6) with 4 dot position.
Write example 7)
Port:0, Station:7, Address:0000, Extra1: 6, Extra2:1
The setting parameter shown above is an example of write(decimal number) to 6 digit DPM(address = 7) with 1 dot position.
Write example 8)
Port:0, Station:8, Address:0000, Extra1: 6, Extra2:0
The setting parameter shown above is an example of write(decimal number) to 6 digit DPM(address = 8) without dot.
Write example 9)
Port:0, Station:9, Address:0000, Extra1: 4N, Extra2:0
The setting parameter shown above is an example of write(decimal number) to 4 digit recently version DPM(address = 9) without dot.
Write example 10)
Port:0, Station:10, Address:0000, Extra1: 4N, Extra2:2
The setting parameter shown above is an example of write(decimal number) to 4 digit recently version DPM(address = 9) with 2 dot position.
Note) After write number to DPM, save writed number at inputed 'Station' address of WORD, FLOAT, DWORD memory.

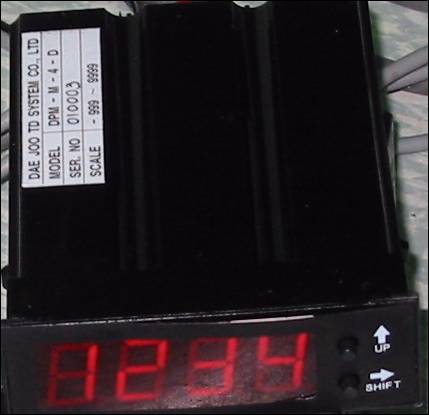

<Figure 2> shows the appearance of DAEJOO DPM controller.
 |
| <Figure 2> Appearance of DAEJOO DPM controller |

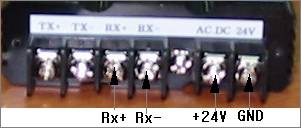

Connection of RS-485 communication cable and main power line
Please connect RS-485 cable to Rx+, RX- and + 24V DC or AC to main power connector(+24V, GND).
(equal setting of 6 digit, 4 digit, 4 digit recently version DPM)
 |
| <Figure 3> Appearance of RS-485 connector and main power line |
Setting of DPM address and baud rate are as follows.
1) Setting of DPM address
Please press 'UP' and 'SHIFT' at the same time. Then will be displayed 'id-S'.
If you press 'SHIFT' button again, will shows 4 digit number such as '0001'.
Set DPM address 0001 ~ 0254 by using 'SHIFT' and 'UP' button.
2) Setting of baud rate
After setting the DPM address such as '1)', press 'UP' and 'SHIFT' at the same time. Then will be displayed 'bA-S'.
If you press 'SHIFT' button again, will shows 4 digit number such as '0001'.
Set baud rate 0001 ~ 0004 by using 'SHIFT' and 'UP' button.
Please press 'UP' and 'SHIFT' twice.
Baud rate according to number
0001 : 19200 BPS
0002 : 9600 BPS
0003 : 4800 BPS
0004 : 2400 BPS
3) Setting of dot position
After setting the DPM address of baud rate such as '1)', '2)', press 'SHIFT' for a while. Then will be displayed current dot position.
Set dot position by using 'UP' button.
Please press 'UP' and 'SHIFT' twice.
4) Error of range over
If DPM address or baud rate range exceeds, the following will be displayed.
LOWER range over : L-Er
HIGHER range over : H-Er
