CORELEX PAN Controller Communication Driver is the driver to communicate with PLC(Power line Communication) controller of Corelex Co., Ltd. in Korea.
<Figure 1> is read setting example of CORELEX PAN Controller communication driver.
|
|

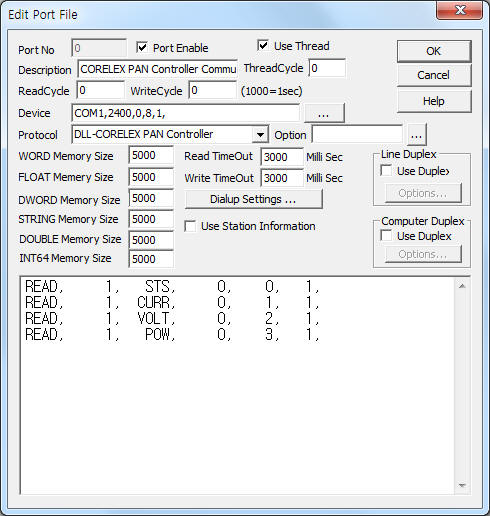

| <Figure 1> Read setting example of CORELEX PAN Controller communication driver |
Device part of <Figure 1> input Com Port(COM1), Baud Rate(2400), Parity Bit(0), Data Bit(8), Stop Bit(1) respectively.
CORELEX PAN Controller communication driver’s read schedule
Read schedule setting parameters are as follows:
1) STATION – Controller address = 0 ~ 255.
2) Read Command – Command = STS, CURR, VOLT, POW.
STS(default) : Read of relay status,
CURR : Read of current value,
VOLT : Read of voltage value,
POW : Read of power value.
3) Read Start Address – Don't care.
4) Save start address for Communication Server – Saving start address of Communication Server.
5) Read Size – Fixed to 1. (read multi data according to map setting)
Read schedule example)
READ, 1, STS, 0, 0, 1,
READ, 1, CURR, 0, 1, 1,
READ, 1, VOLT, 0, 2, 1,
READ, 1, POW, 0, 3, 1,
If you click the icon
in protocol option part, you
can see the dialogue box such as <Figure 2>. you can also set read schedule by
using this part.
 |

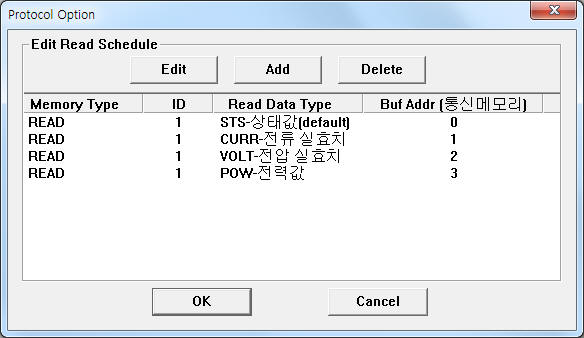

| <Figure 2> Example of CORELEX PAN Controller communication driver’s Option dialogue box |
You can set read schedule by using
,
,
button and listbox
of <Figure 2>.
 |

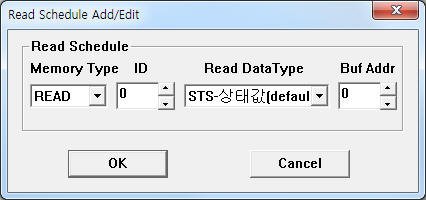

| <Figure 3> Example of CORELEX PAN Controller communication driver’s read schedule Add/Edit dialogue box |
When you click Add button or Edit button in dialogue box of <Figure 2>, dialogue box of <Figure 3> is shown.
You can read and write by using write settings.
Bit Write
Bit write setting parameters are as follows:
1) PORT Port no. (0 ~ 255)
2) STATION Controller address = 0 ~ 255.
3) ADDRESS Start saving address of read data for STS, CURR, VOLT, POW write command. (decimal unit)
4) Extra1 Write command.
blank or etc – Relay ON/OFF control,
RST, RESET – PAN controller reset,
STS : Read of relay status,
CURR : Read of current value,
VOLT : Read of voltage value,
POW : Read of power value.
5) Extra2 Don't care.
Write example 1)
PORT : 0 , STATION : 1, ADDRESS : 0000, EXTRA1 : , EXTRA2 : ,
The setting parameter shown above is an example of relay ON/OFF control of address 1 PAN controller.
Write example 2)
PORT : 0 , STATION : 3, ADDRESS : 0000, EXTRA1 : RST, EXTRA2 : ,
The setting parameter shown above is an example of PAN controller reset.(controller address = 3)
Write example 3)
PORT : 0 , STATION : 1, ADDRESS : 0012, EXTRA1 : STS, EXTRA2 : ,
The setting parameter shown above is an example of relay status read and save readed data from 12 memory address.(controller address = 1)
Write example 4)
PORT : 0 , STATION : 3, ADDRESS : 0123, EXTRA1 : VOLT, EXTRA2 : ,
The setting parameter shown above is an example of voltage value read and save readed data from 123 memory address.(controller address = 3)
Word Write
Word write and bit write have the same setting parameters except output value.
* Connection of RS-232C communication cable with CORELEX PAN controller
You have to connect full RS-232C cable(because of CORELEX PAN controller use RTS signal) to CORELEX PAN controller.
