CI-154 Communication Driver



CI-154 Communication Driver is the driver to communicate with power DPM.



1. Read settings

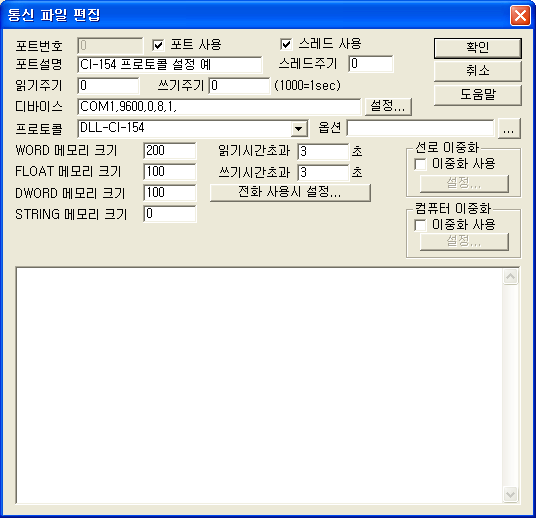

<Figure 1> is read setting example of CI-154 communication driver.

<Figure 1>  Read setting example of CI-154 communication driver

Device part of  <Figure 1> input Com Port(COM1), Baud Rate(9600), Parity Bit(0), Data Bit(8), Stop Bit(1) respectively.

CI-154 controller's baud rate, parity bit, data bit, stop bit are fixed to 9600, 0, 8, 1.



2. Writing settings

You can set CI-154 controller by using write settings.



Bit Write

Bit write setting parameters are as follows:

1)  PORT                   Port no. (0 ~ 255)

2)  STATION             Don't care.

3)  ADDRESS           When Extra1 = Y, output address : 0000 ~ 0007.

4)  Extra1                   Write command = Y or Z

Y :  ON/OFF of LED lamp

Z:  Melody alarm

5)  Extra2                   Don't care.



Write example 1)

Address Extra1 Output value Result
  Z OFF  Melody alarm OFF
0000 Y ON 1st LAMP ON
0005 Y ON 6th LAMP ON



Word Write

Word write setting parameters are as follows:

1)  PORT                   Port no. (0 ~ 255)

2)  STATION             Don't care.

3)  ADDRESS           Don't care.

4)  Extra1                   Area : P ~ Z.

5)  Extra2                   Don't care.



Write example 1)

Extra1 Output value Display type
P 1234 **1.234
X 56789 *56.789

* = space.
