CIP-7000 Server Communication Driver



CIP-7000 Server communication driver is driver to communicate with CIP-7000 Client controller of Eraeseeds Co., Ltd. in Korea.



1. Read settings

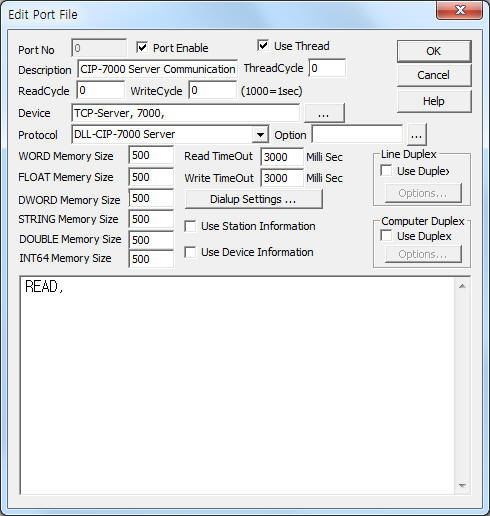

<Figure 1> is read setting example of CIP-7000 Server communication driver.

<Figure 1> Read setting example of CIP-7000 Server communication driver

Device part of <Figure 1> input Device Type(TCP-Server), Service port of TCP/IP(7000) respectively, according to setting of Client controller.



Read schedule of CIP-7000 Server communication driver

Please input 'READ' one line for read schedule of CIP-7000 Server communication driver.



Read schedule example)

READ,



CIP-7000 Server communicatin driver store received data from Sensor controller(Client) such as <Table 1>.

WORD memory address Contents

Remarks
0 ~ 255 0 : Sensor Short
1 : Sensor Open
2 : error, ...		 status value of 0 ~ 255 Sensor controller
<Table 1> WORD memory address and contents of CIP-7000 Server communication driver



If you click the icon  in protocol option part, you can see the dialogue box such as <Figure 2>. you can also set read schedule by using this part.

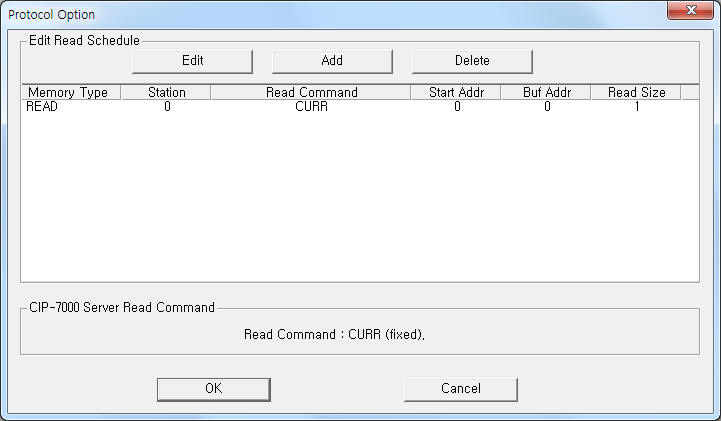

<Figure 2> Example of CIP-7000 Server communication driver’s Option dialogue box



You can also set read schedule by using , ,  button and listbox of <Figure 2>.

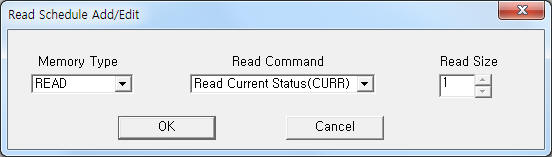

<Figure 3> Example of CIP-7000 Server communication driver’s read schedule Add/Edit dialogue box



When you click Add button or Edit button in dialogue box of <Figure 2>, dialogue box of <Figure 3> will be shown.





2. Write settings

CIP-7000 Server communication driver don't support 'Write settings'.
