BS300A Communication Driver



BS300A Communication Driver is the driver to communicate with BS300A load cell controller of BongSin Co., Ltd. in Korea.



1. Read settings

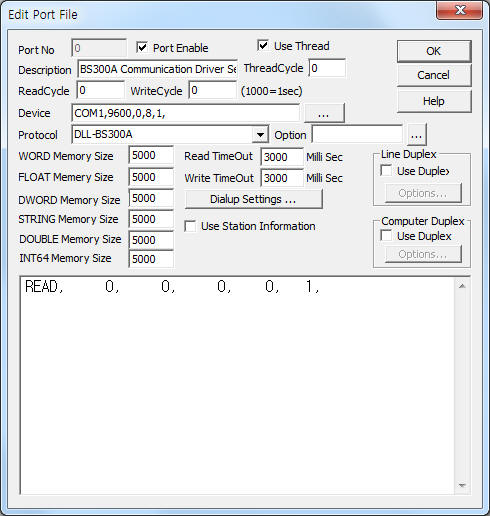

<Figure 1> is read setting example of BS300A communication driver.

<Figure 1>  Read setting example of BS300A communication driver

Device part of  <Figure 1> input Com Port(COM1), Baud Rate(fixed to 9600), Parity Bit(0), Data Bit(8), Stop Bit(1) respectively.



BS300A communication driver’s read schedule

Read schedule setting parameters are as follows:

1) STATION – Don't care.

2) Read command – Don't care.

3) Read start address –Don't care.

4) Save start address for Communication Server – Saving start address of Communication Server.

5) Read Size – Size = Fix to 1.



Read schedule example)

READ,     0,    0,     0,    0,   1,

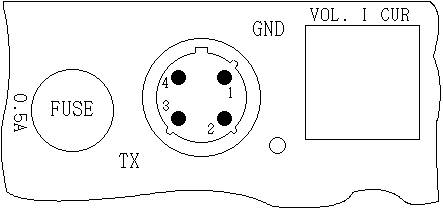

Note) Communication cable of BS300A



(connection cable of each connector)

1

GND

2

N.C

3

TX

4

N.C





2. Writing settings

BS300A communication driver don't support write settings.(read only controller)
