BASO-2000 Communication Driver is the driver to communicate with BASO2000 controller in Korea.

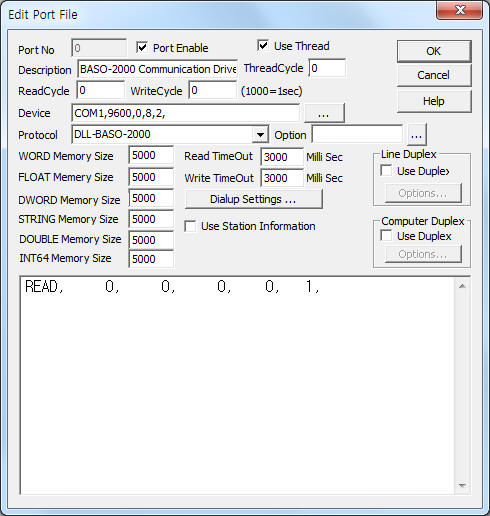

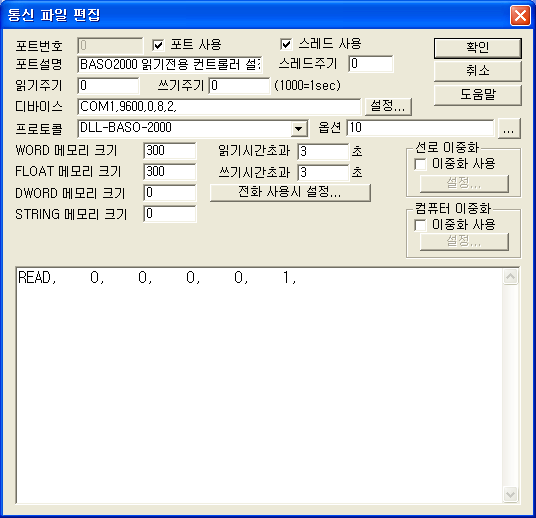

<Figure 1> is read setting example of BASO-2000 communication driver.
|
|
| <Figure 1> Read setting example of BASO-2000 communication driver |
Device part of <Figure 1> input Com Port(COM1), Baud Rate(9600), Parity Bit(2), Data Bit(8), Stop Bit(2) respectively.
BASO-2000 communication driver¡¯s read schedule
Read schedule setting parameters are as follows:
1) STATION – Don't care.
2) Read command – Don't care.
3) Read start address –Don't care.
4) Save start address for Communication Server – Saving start address of Communication Server.
5) Read Size – Size = Fix to 1.(real reading data size = 71 WORD)
Read schedule example)
READ, 0, 0, 0, 0, 1,
BASO-2000 communication driver don¡¯t support ¡®Write settings¡¯.
