AD Power M2M4 Meter Communication Driver is the driver to communicate with M2M4 Series Power Meter of AD Power CO., LTD. in Korea.
<Figure 1> is read setting example of AD Power M2M4 Meter communication driver.
|
|

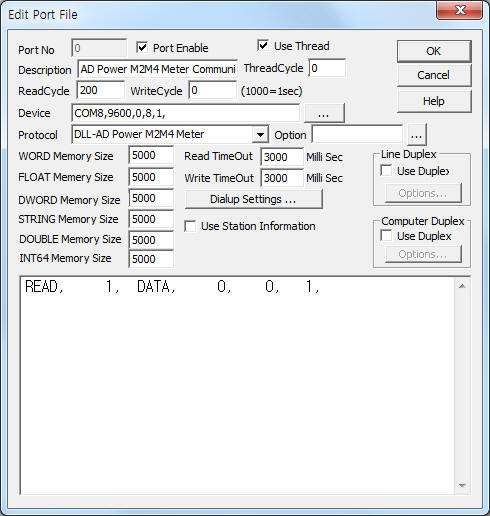

| <Figure 1> Read setting example of AD Power M2M4 Meter communication driver |
Device part of <Figure 1> input Com Port(COM1), Baud Rate(9600), Parity Bit(0), Data Bit(8), Stop Bit(1) respectively.
AD Power M2M4 Meter communication driver’s read schedule
Read schedule setting parameters are as follows:
1) STATION – 0 ~ 999 equipment ID address.
2) Read command – Command = DATA.(Refer to <Table 1>)
3) Read Start Address – Don't care.
4) Save Start Address for Communication Server – Saving start address of Communication Server.
5) Read Size – Size = Fix to 1.
Read schedule example)
READ, 0, DATA, 0, 0, 1,
<Table 1> is a description of read command and stored values of AD Power M2M4 Meter communication driver.
| Read Command | Contents | Stored Values | Remarks |
| DATA | Read of measurement value | Start Add + 0 : Voltage Start Add + 1 : Current Start Add + 2 : Power Start Add + 3 : Power Factor |
Dot = 1 Dot = 3 Dot = 1 Dot = 3 |
| <Table 1> Read commands type and stored values of AD Power M2M4 Meter communication driver | |||
AD Power M2M4 Meter communication driver store the same data in WORD, DWORD, FLOAT, DOUBLE, STRING memory, but the data formats are different.
If you click the icon
in protocol option part, you can see the dialogue
box such as <Figure 2>. you can also set read schedule by using this part.
 |

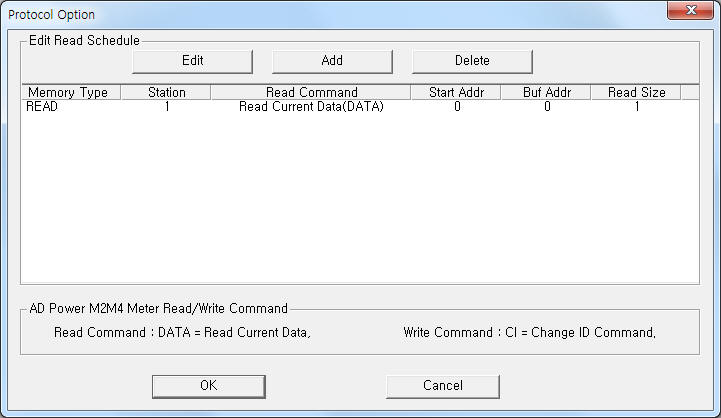

| <Figure 2> Example of AD Power M2M4 Meter communication driver’s Option dialogue box |
You can also set read schedule by using
,
,
button and listbox of <Figure 2>.
 |

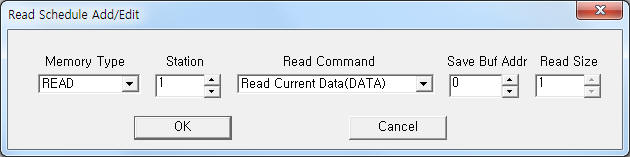

| <Figure 3> Example of AD Power M2M4 Meter communication driver’s read schedule Add/Edit dialogue box |
When you click Add button or Edit button in dialogue box of <Figure 2>, dialogue box of <Figure 3> will be shown.
You can change Power Meter ID by using write commands.
Bit write
Bit write and word write have the same setting parameters except output value(0 or 1).
Word write
Word write setting parameters are as follows:
1) PORT : Port no. (0 ~ 255)
2) STATION : 0 ~ 999 equipment ID address.
3) ADDRESS : Don't care.
4) EXTRA 1 : Write command = CI (change Power Meter ID command).
5) EXTRA 2 : Don't care.
Write example 1)
PORT:0, station:1, ADDRESS:0000, Extra1:CI, Extra : 0
The setting parameter shown above is an example of write for changing ID(1 ~ 999) of AD Power Meter connected with 0 port and 1 equipment ID.
Note) CI write command use at 1:1 connection. If you connected 1:N, it will set equal ID(all connected equipment).
Block write
AD Power M2M4 Meter communication driver don’t support ‘Block write’.
<Figure 4> shows the appearance of AD Power M2M4 Power Meter.
 |

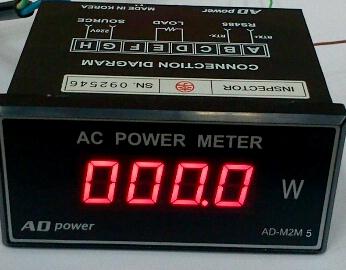

| <Figure 4> Appearance of AD Power M2M4 Power Meter |
